Thermal inkjet printing technology

The maximum number of printheads is 4PENS (total height 203.20 mm / 8inch)

0.5 mm – 2 mm from surface

Speed / resolution (horizontal x vertical)

600 x 600 DPI maximum speed 38 M / min

300 x 600 DPI single train maximum speed 38 M / min

600 x 300 dpi high speed maximum speed 76m / min

300 x 300 dpi single train maximum speed 76 M / min

600 x 200 DPI high speed maximum speed 114 M / min

300 x 300 dpi high speed maximum speed 152 M / min

300 x 150 DPI high speed maximum speed 306 M / min

The maximum data length can be 2.7 M

Ink: HP 42ml / 370ml

Printing capacity

1: Fonts fully support Windows TrueType ?. You can make and install special fonts by downloading

2: Date, time, counter, text, shift, barcode and other functions

All contents can be zoomed, rotated (90, 180, 360) and ink consumption can be adjusted according to different printing materials

3: Multi nozzle seamless printing function

Database supports TXT, Excel format, supports SQL server and ODBC

bar code

1: There are more than 70 kinds of 1D and 2D codes (with database)

2: You can create barcode content freely, such as special barcode with time date synchronization or counter function

3: The ink space ratio of barcode can be adjusted to achieve the printing under harsh conditions

設計軟件

1:嵌入WINDOWS2000/XP操作系統的OBJ INKdraw.友好的中文人機對話支持多國語種.
2: 支持觸摸顯示屏
3: 使用以太網絡或RS232連接，就可遠程控制OBJ INKdraw。其廣泛的兼容性,可通過對應接口實現與不同類型的工作軟件銜接.
4:可以為用戶客制軟件

5: INKdraw免費升級
6：可以靈活設定操作者的使用權限,方便生產管理
打印時監視打印開始，打印的內容將顯示在打印窗口(可自由選擇啟用)
打印成本計算可以隨時計算墨水的消耗和墨盒可噴印數量,對成本的控制一目了然.

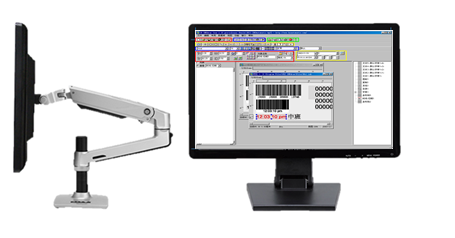

Design software

1: Obj inkdraw embedded in Windows 2000 / XP operating system. Friendly Chinese man-machine dialogue, supports multiple languages

2: Touch screen support

3: Obj inkdraw can be controlled remotely through Ethernet or RS232 connection. Its extensive compatibility can connect with different types of working software through certain interface.

4: Customized software for customer

5: Inkdraw free upgrade

6: It can flexibly set the use authority of the operator to facilitate production management

Monitor the start of printing when printing, and the printed content will be displayed in the printing window

Printing cost calculation can calculate ink consumption and ink cartridge printable quantity at any time, and to control the cost clearly

Meet CE standards

Operating system supportWindowsXP/Windows7

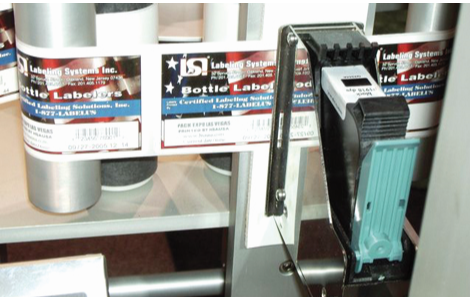

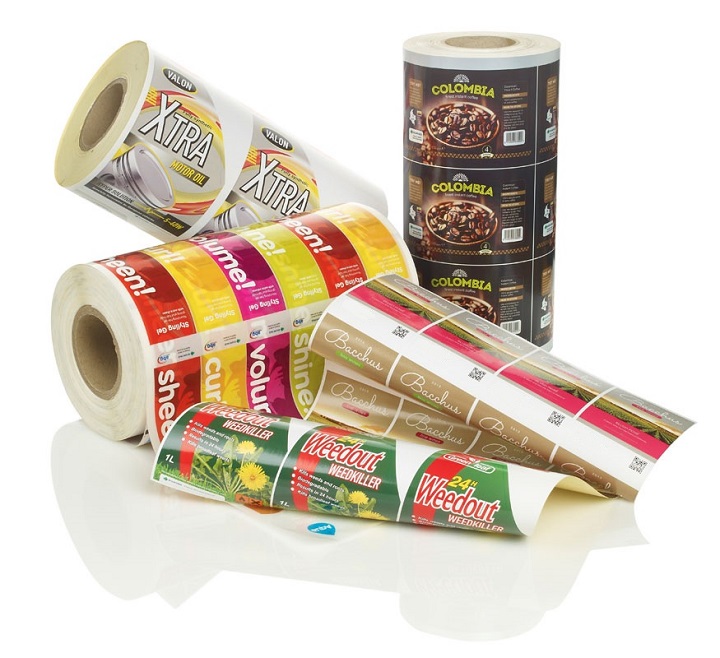

The ink-jet system based on the thermal inkjet technology is suitable for the ink-jet printing system of single sheet paper coding platform, cartridge coding printing equipment, roll to roll label printing and online packaging equipment
